GMC Sierra & Canyon AT4 / AT4X Off-Road Technical Hub & Tire Fitment Engine
Comprehensive engineering calculator and field-verified clearance tolerances for GMC Sierra 1500, 2500HD, and Canyon AT4 & AT4X off-road chassis.
Interactive AT4 Tire Fitment, Wheel Offset & Speedometer Correction Engine
GMC AT4 & AT4X Model Family, Trim Selector & Chassis Architecture
GMC AT4 and AT4X off-road trucks feature factory 2-inch suspension lifts, Rancho or Multimatic DSSV dampers, and specialized wheel clearances for 33-inch and 35-inch all-terrain tires. Calculating exact tire outer diameter, speedometer calibration, and towing payload margins ensures off-road capability and factory safety compliance across Sierra 1500, 2500HD, and Canyon platforms.
The GMC AT4 sub-brand represents General Motors' dedicated off-road trim architecture, developed on the GMT T1XX platform. Unlike aftermarket suspension alterations that compromise factory vehicle dynamics control systems (StabiliTrak) and electronic stability control (ESC), factory AT4 configurations maintain engineered caster, camber, and scrub radius curves. Understanding the mechanical differences across trims is vital when upsizing tires or altering wheel offsets:

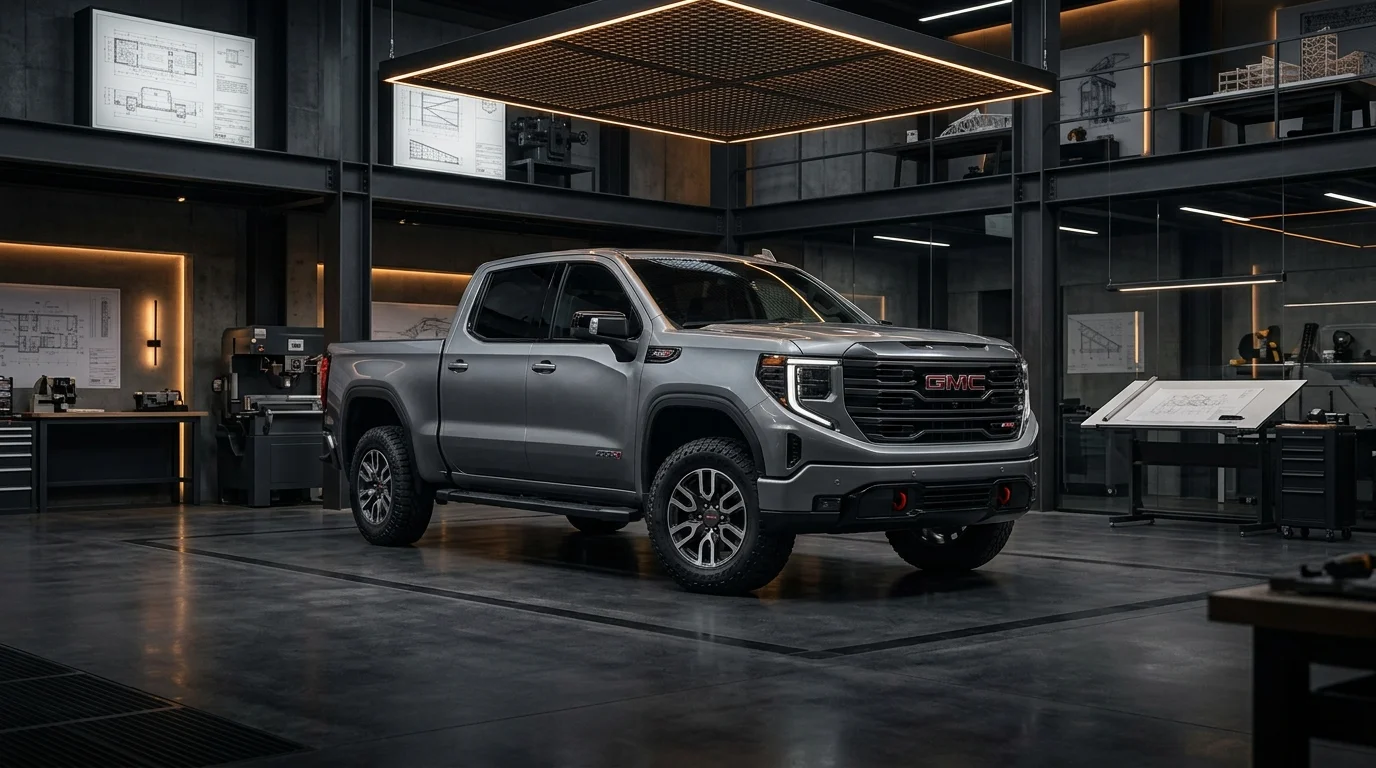

Sierra 1500 AT4
Equipped with an engineered Factory 2-Inch Lift, Rancho monotube off-road shock absorbers, an Eaton G80 automatic locking rear differential (or mechanical 2-speed AutoTrac transfer case with low range), and 275/65R20 Goodyear Wrangler DuraTrac tires measuring 34.1 inches.
Sierra 1500 AT4X
Built for extreme off-road terrain, integrating factory front and rear electronic locking differentials, underbody steel skid plates, and race-derived Multimatic DSSV (Dynamic Suspensions Spool Valve) dampers featuring position-sensitive valving for unprecedented off-road bottom-out resistance.
Sierra 2500HD AT4
Heavy-duty chassis utilizing hydroformed front frame rails, torsion bar front suspension, and Allison 10-speed transmissions paired to the 6.6L Duramax L5P turbo-diesel or 6.6L L8T gas V8, designed to sustain maximum Gross Vehicle Weight Rating (GVWR) of up to 12,150 lbs while running Load Range E commercial truck tires.
Canyon AT4 & AT4X
Mid-size platform powered by the 2.7L TurboMax high-output engine (310 hp, 430 lb-ft), offering an ultra-nimble track width. The Canyon AT4X features a 3.0-inch factory lift and 33-inch MT tires, with the AEV Edition accommodating full 35-inch tires.
Factory Suspension Lift Geometry: Stock 2-Inch vs Aftermarket Clearances
Upgrading truck tires involves strict kinematic relationships between rim width, tire section width, aspect ratio, and vehicle speed sensor pulse generation. For in-depth suspension geometry and leveling lift tolerances, consult our dedicated AT4 tire fitment and suspension clearance calculator.
Tire Rolling Diameter & Speedometer Calibration Formula
Variable Definition & Units
275 mm (OEM Sierra)
65% (0.65)
20 inches
34.1 inches (866 mm)
When selecting engines, pairing tire diameter with driveline gear ratios is critical. Larger rolling diameters effectively lengthen final drive ratios, reducing wheel torque. Review our comprehensive breakdown of 3.0L Duramax LZ0 and 6.2L L87 V8 engine specifications and fluid tolerances to ensure transmission longevity. Furthermore, heavier tire wheel assemblies increase rotational inertia and unsprung mass, reducing available payload; calculate your total trailering margins via our towing capacity and trailer wiring diagnostics workstation.
Emergency Diagnostic Triage & Critical Service Procedures
Interactive GMC AT4 Tire Clearance & Rub Triage
Follow systematic automotive technician protocols to isolate and eliminate tire rubbing at full steering lock or suspension compression.
Frequently Asked Questions About GMC AT4 Trucks & Tire Fitment
01What is the largest tire you can put on a stock GMC Sierra 1500 AT4 without rubbing?
A stock GMC Sierra 1500 AT4 with factory 2-inch suspension lift safely clears up to a 285/65R20 (34.6 inches in diameter, 11.5 inches wide) on factory +28mm offset wheels without rubbing. Fitting a true 35x12.50R20 requires either a 1.5-inch leveling kit or a mild cab corner mud flap bracket modification (NorCal mod) to prevent inner liner rubbing at full steering lock.
02Do GMC Canyon AT4X models come with 33-inch or 35-inch tires from the factory?
Standard Canyon AT4X models come equipped from the factory with 285/70R17 Goodyear Wrangler Territory MT tires measuring 32.8 inches in diameter. The Canyon AT4X AEV Edition upgrades to factory 35-inch (315/70R17) tires, featuring high-clearance fender flares and AEV stamped-steel front and rear bumpers.
03How does installing 35-inch tires affect the GMC 10-speed transmission and speedometer?
Upsizing from factory 275/65R20 (34.1 inches) to 35x12.50R20 increases rolling circumference by 5.4%. At a speedometer reading of 65 mph, actual vehicle speed is 68.5 mph. Without reprogramming the BCM/TCM via an OBD-II programmer, the Hydra-Matic 10L80 transmission holds lower gears longer and delays torque converter lockup in 9th and 10th gears.
04Can I install wheel spacers on factory AT4 wheels to clear 35-inch tires?
High-grade billet aluminum hubcentric wheel spacers (0.25 to 0.5 inches) push factory +28mm offset wheels outward, eliminating inner upper control arm (UCA) contact. However, pushing wheel offset beyond 0mm drastically expands the scrub radius, causing outer tire shoulder contact with the front air dam and lower cab mount.
