AT4 Suspension Lift, Tire Fitment & Load Range Calculator
Comprehensive tire dimension calculations, wheel offset backspacing tolerances, and cold inflation pressure specifications for GMC AT4 and AT4X suspension architectures.
What is the Maximum Tire Size on a Stock GMC Sierra AT4?
To fit larger tires on a GMC Sierra or Canyon AT4 with factory 2-inch lift, 275/65R20 (34.1 inches) represents OEM fitment, while 285/65R20 (34.6 inches) or 35x12.50R20 tires require verified Wheel Offset +28mm and factory Bolt Pattern 6x139.7mm to eliminate inner Fender Liner Rub at full steering lock, accompanied by Speedometer Calibration.
Determining the absolute maximum tire envelope for a GMC truck requires analyzing three distinct physical bottlenecks: Upper Control Arm (UCA) ball joint clearance, stabilizer sway bar contact at full steering lock, and cab corner mud flap clearance during suspension compression. In our primary GMC AT4 technical systems hub, we established that factory AT4 suspension incorporates a 2.0-inch taller ride height compared to standard Sierra 1500 trims. However, because factory wheels maintain a tucked +28mm offset, increasing tire width creates inner clearance interference before outer fender clearance becomes an issue.
Interactive Tire Size, Rim Width, Wheel Offset & Speedometer Simulator
| Metric / Flotation Sizing | Outer Diameter | Section Width | Recommended Rim | Stock 2" Lift Status | Leveled (+1.5" to 2") |
|---|---|---|---|---|---|
| 275/65R20 | 34.1 in | 10.8 in | 7.5–9.5 in | Factory OEM Fitment | 100% Direct Fit |
| 285/65R20 | 34.6 in | 11.2 in | 8.0–10.0 in | Direct Fit (OEM Offset) | 100% Direct Fit |
| 35x12.50R20 | 35.0 in | 12.5 in | 8.5–11.0 in | Rub Risk at Full Lock | Fits with Mudflap Bracket Mod |
| 275/70R18 | 33.2 in | 10.8 in | 7.0–9.0 in | Factory OEM AT4X Fitment | 100% Direct Fit |
| 285/70R17 | 32.7 in | 11.2 in | 7.5–9.5 in | Factory OEM Canyon AT4X | 100% Direct Fit |
| 295/65R20 | 35.1 in | 11.6 in | 8.0–10.0 in | Fits 2500HD / Rubs 1500 | Fits 1500 with 2.5-in Level |
| 305/55R20 | 33.2 in | 12.0 in | 8.5–11.0 in | Requires +12 to +20mm Offset | Fits Aggressive Stance |
| 37x12.50R20 | 37.0 in | 12.5 in | 8.5–11.0 in | Requires 4+ In Lift | Requires NorCal Mod & 4-in Lift |
Factory 2-Inch Suspension Lift vs Leveling Kits & Multimatic DSSV Clearance
The factory 2-inch lift on Sierra 1500 AT4 utilizes longer strut bodies and taller rear lift blocks, yielding an approach angle of 27.0° and 10.9 inches of minimum ground clearance. When installing aftermarket strut spacers above the factory 2-inch coilovers, suspension droop travel is compromised. As droop angle exceeds 12°, factory ball joint boots stretch and contact the coil spring pocket. When running larger tire diameters, matching transmission shift logic to engine torque specs and powertrain gearing prevents premature clutch pack degradation.
Upper Control Arm (UCA) Ball Joint
Factory stamped arms have limited droop travel. Adding leveling spacers above 2.0 inches over-extends ball joint angle; tubular aftermarket UCAs restore factory caster.
Tire Load Range E vs D: Cold Inflation Pressure (PSI) & Ply Rating Guide
Off-road truck owners frequently transition from P-metric (Passenger) standard load tires to LT-metric (Light Truck) Load Range E (10-ply rated) tires for enhanced puncture resistance on sharp shale and rocky trails. However, Light Truck tires feature thicker casing sidewalls that require higher minimum baseline pressures to maintain structural integrity. Maintaining correct cold tire pressures is critical when towing heavy loads; verify your vehicle's tongue weight limits via our towing capacity and tongue weight safety workstation.
Tire and Rim Association (TRA) Cold Inflation Load Formula
Variable Definition & Units
3,195 lbs (Load Range E)
80 PSI reference specification
45 PSI cold operating baseline
2,015 lbs per tire (4,030 lbs axle capacity)
Recommended Cold Inflation PSI for GMC AT4 Platforms
Frequently Asked Questions About AT4 Tire Fitment & Suspension
01Will 35x12.50R20 tires fit a stock GMC Sierra 1500 AT4 without a lift kit?
True 35x12.50R20 tires (measuring exactly 35.0 inches tall and 12.5 inches wide) will cause inner sidewall rub against the sway bar and lower cab-corner fender liner bracket at full steering lock on stock +28mm offset wheels. To achieve complete non-rubbing clearance under full suspension articulation, either install a 1.5-inch to 2.0-inch front leveling kit, switch to wheels with a +18mm to +20mm offset, or perform a mild plastic liner pushback (NorCal mod).
02What is the difference between Rancho monotube shocks and Multimatic DSSV dampers on AT4 trucks?

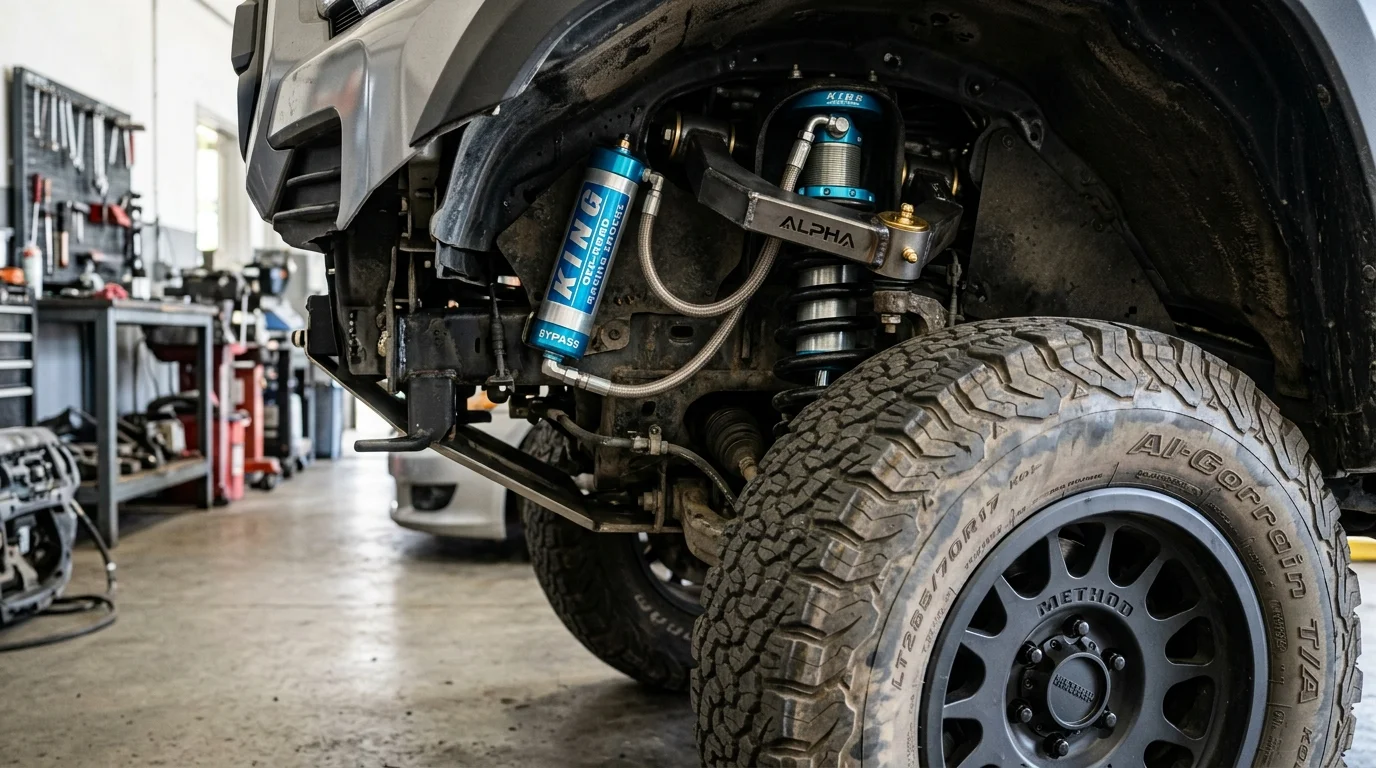

Standard Sierra 1500 AT4 models utilize Rancho monotube gas-pressurized shock absorbers calibrated for general off-road compliance with factory 2-inch lift blocks. Sierra 1500 AT4X models incorporate precision Multimatic DSSV (Dynamic Suspensions Spool Valve) dampers. DSSV technology replaces traditional deflected-disc shims with precision laser-cut spool valves, providing position-sensitive fluid flow for extreme rock crawling and high-speed desert stability without body wallow.
03Should I inflate Load Range E tires to 80 PSI on a half-ton GMC Sierra 1500 AT4?
No. The 80 PSI marking on the tire sidewall indicates the maximum cold inflation pressure required to sustain the tire's maximum rated load capacity (typically 3,195 to 3,640 lbs per tire). On a half-ton Sierra 1500 with a curb weight of approximately 5,400 lbs, running 80 PSI causes extreme center-tread tire wear, severe ride harshness, and reduced traction. The recommended cold inflation pressure for Load Range E tires on a half-ton AT4 is 42 to 45 PSI front and 40 to 42 PSI rear.
04How does wheel offset affect scrub radius on GMC AT4 suspension?
Factory GMC Sierra wheels feature a +28mm positive offset. Installing aggressive negative offset wheels (such as -12mm or -18mm) pushes the tire contact patch outward, drastically increasing positive scrub radius. This expansion creates higher steering effort, amplifies bump steer when hitting potholes, accelerates wear on wheel bearings, and causes outer tire edges to contact the front air dam during cornering.
