Towing Capacity, Tongue Weight & Trailer Wiring Diagnostics
Engineering towing ratings, tongue weight safety formulas, 7-pin trailer wiring schematics, and underhood Fuse F29 running light triage for GMC AT4 and AT4X platforms.
Sierra & Canyon AT4 Maximum Towing Capacity & Payload Safety Limits
GMC Sierra 1500 AT4 Towing Capacity ranges from 8,900 to 9,200 lbs with maximum payload between 1,420 and 1,580 lbs. Verifying Tongue Weight 10-15% of gross trailer weight, Trailer 7-Pin Blade Connector wiring, and Gross Combined Weight Rating (GCWR) margins ensures stable trailering without overloading rear axle ratings.
Towing safely with an off-road oriented truck requires balancing suspension compliance with payload geometry. While standard road-oriented Sierra trims achieve up to 13,200 lbs of towing capacity, AT4 models feature softer, longer-travel suspension damping and factory 2.0-inch lift blocks that slightly reduce maximum ratings to prioritize articulation and trail comfort. As detailed in our overview of GMC Sierra AT4 chassis specs, exceeding vehicle Gross Axle Weight Ratings (GAWR) causes rear suspension bottoming, headlights to aim upward, and severe front tire unweighting.
Interactive Towing Capacity, Tongue Weight & Hitch Safety Engine
| Model Platform | Trim | Standard Engine | Max Towing (lbs) | Payload (lbs) | GVWR (lbs) |
|---|---|---|---|---|---|
| GMC Sierra 1500 AT4 | AT4 | 3.0L Duramax LZ0 Turbo-Diesel | 9,200 lbs | 1,520 lbs | 7,300 lbs |
| GMC Sierra 1500 AT4X | AT4X | 3.0L Duramax LZ0 Turbo-Diesel | 8,900 lbs | 1,420 lbs | 7,100 lbs |
| GMC Sierra 1500 AT4X AEV Edition | AT4X AEV Edition | 6.2L EcoTec3 L87 V8 | 8,700 lbs | 1,290 lbs | 7,100 lbs |
| GMC Sierra 2500HD AT4 | 2500HD AT4 | 6.6L Duramax L5P Turbo-Diesel | 18,500 lbs | 3,760 lbs | 11,350 lbs |
| GMC Sierra 2500HD AT4X | 2500HD AT4X | 6.6L Duramax L5P Turbo-Diesel | 18,400 lbs | 3,060 lbs | 11,350 lbs |
| GMC Canyon AT4 | Canyon AT4 | 2.7L TurboMax High-Output I4 | 7,700 lbs | 1,550 lbs | 6,250 lbs |
| GMC Canyon AT4X | Canyon AT4X | 2.7L TurboMax High-Output I4 | 6,000 lbs | 1,250 lbs | 6,250 lbs |
| GMC Yukon AT4 | Yukon AT4 | 5.3L EcoTec3 L84 V8 | 8,200 lbs | 1,610 lbs | 7,500 lbs |
Trailer 7-Pin Connector Wiring Color Code & Fuse F29 Running Light Diagnostics
Before hitching a trailer, calculating available payload capacity prevents hazardous frame overload. Upgrading to heavier 10-ply tires directly impacts load limits; review our tire load range E payload capacities table for cold inflation guidance. Additionally, high-stress mountain climbs generate intense heat in the transmission torque converter; consult Duramax diesel transmission cooling specs to maintain safe operating temperatures. When diagnosing trailer marker lamp outages, inspect Fuse F29 Trailer Running Lights in the underhood fuse center. For auxiliary lighting or winches, utilize the factory cabin Upfitter AUX Switches.
SAE J2807 Payload Safety Margin Formula
Variable Definition & Units
7,300 lbs
5,450 lbs
450 lbs
7,000 lbs (840 lb tongue weight)
560 lbs remaining
Terminal 4 (+12V Auxiliary Battery Charge)
Supplies continuous alternator power to recharge trailer breakaway batteries and RV battery banks while underway.
Integrated Trailer Brake Controller (ITBC) Calibration & Gain Settings
General Motors' Integrated Trailer Brake Controller communicates via the vehicle's high-speed CAN-bus network to monitor brake pedal pressure and accelerometer inertia. Below is the verified factory 7-way RV blade pinout standard utilized on all Sierra and Canyon trucks:
| Pin Position | Circuit Function | Wire Color | Wire Gauge | Fuse Rating & Location | Diagnostic Test Procedure |
|---|---|---|---|---|---|
| 7-Pin RV Blade Pin 3 (Green / Brown) | Trailer Park & Running Lamps | Brown or Dark Green | 14 AWG | Underhood Engine Fuse Block Fuse F29 (30A Mini Fuse) (30A) | Check 30A fuse F29 with digital multimeter on DC voltage mode. Verify 12V at pin 3 with headlight switch in PARK. If 0V, verify trailer body control module relay K12. |
| 7-Pin RV Blade Pin 1 (White) | Main Chassis Return Ground | White | 10 AWG | Chassis Ground Lug Behind Spare Tire (G401) (0A) | Measure resistance from Pin 1 to bare frame metal. Must measure < 0.2 Ohms. High resistance causes flickering trailer brakes. |
| 7-Pin RV Blade Pin 2 (Blue) | Proportional Electric Brake Output | Dark Blue | 12 AWG | Underhood Fuse F52 (30A J-Case Fuse) (30A) | Squeeze manual trailer brake slider on center console. Measure voltage at Pin 2 ramping from 2V to 12V proportional to manual slider position. |

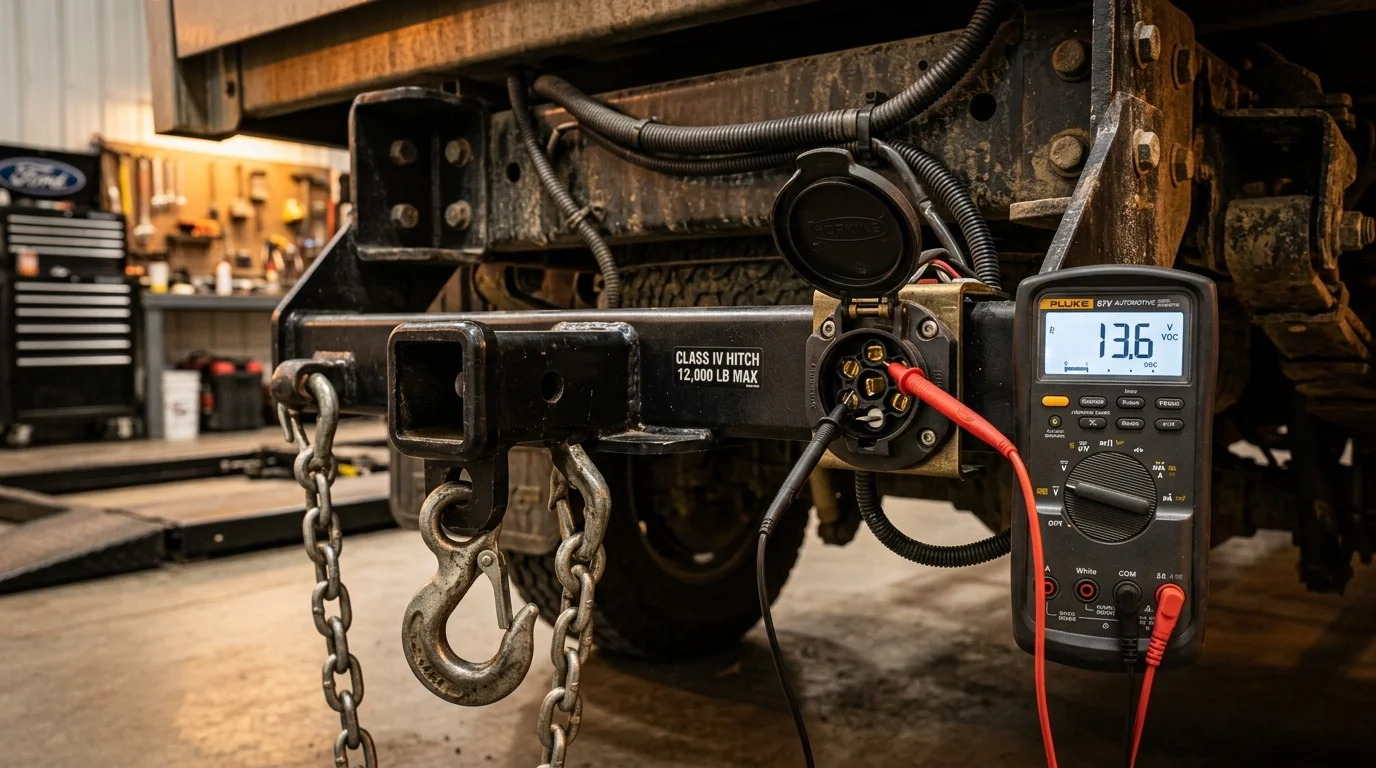

| 7-Pin RV Blade Pin 4 (Red / Black) | 12V Battery Constant Charge Line | Red with White or Black Stripe | 10 AWG | Underhood Fuse Block Fuse F63 (40A J-Case) (40A) | Verify 13.8V–14.4V with engine idling. Powers onboard trailer battery charging and breakaway switch trickle charge. |
Frequently Asked Questions About AT4 Towing & Electrical Systems
01Why do trailer running lights fail to illuminate on GMC AT4 trucks while turn signals work?
GM trucks split trailer lighting into independently protected circuits. Trailer turn signals and brake lights run through the Body Control Module (BCM), while trailer running/marker lights are powered through dedicated underhood Fuse F29 (or Fuse 26 on select model years). If trailer marker lights are dead while truck tail lights illuminate, check Fuse F29 in the engine compartment fuse block.
02What is the recommended tongue weight percentage for an off-road overland trailer behind an AT4?
The SAE J2807 towing standard mandates a tongue weight between 10% and 15% of total gross trailer weight (GTW) for conventional bumper-pull hitches. For an overland trailer weighing 6,000 lbs, tongue weight must measure between 600 and 900 lbs. Tongue weight below 10% creates dangerous high-speed trailer sway, while exceeding 15% overloads the truck's rear suspension and reduces front steering grip.
03How do I calibrate the Integrated Trailer Brake Controller (ITBC) gain on my Sierra AT4?
To set ITBC gain: Hitch the trailer on a flat, dry paved road. Accelerate to 20 mph. Squeeze the manual trailer brake slider on the dash without stepping on the truck's brake pedal. If trailer tires lock up and skid, decrease gain by 0.5. If the trailer pushes the truck forward, increase gain until trailer tires reach the threshold of locking without skidding.
04Does installing larger 35-inch tires lower the factory towing capacity of a GMC AT4?
Yes. Upsizing to heavier 35-inch tires increases unsprung rotating mass and effectively lengthens the truck's final drive ratio by approximately 5.4%. This reduction in wheel torque increases transmission fluid temperatures during mountain towing. Certified technicians recommend reducing maximum trailer weight by 500 to 1,000 lbs when running 35-inch mud tires on stock gearing.
